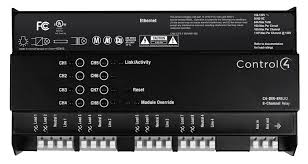

The Control4® DIN-Rail 8-Channel Relay V2 Switch controls up to eight high in-rush loads from one module in the Control4 system. Each channel supports a variety of load types, including incandescent, halogen, electronic low-voltage transformers, magnetic low-voltage transformers, fluorescents, compact fluorescents, LEDs, and motors.
Features
- Controls up to eight high in-rush loads
- Channel buttons allow for toggling a load on/off
- Channel status LEDs indicate whether a load is on or off
- Module Override button allows toggling between the module override scene and all channels off or setting the module override scene to to the current channel's on/off settings
- Module Status LED indicates if module power is on with normal operation, off, or in thermal overload
- Link/Activity LED indicates system link status, communication activity, or firmware update status
- Reset button can be used for restoring factory defaults or network configuration settings
- Auxiliary override connection allows a standard line-voltage toggle switch to control the attached lights before the control system is installed or in case the controller malfunctions
- Module can be installed in either a Contro4 5-Slot or 2-Slot Panel or in a third-party DIN-Rail Panel
