Device
- D-ILA Technology
- Yes
- Chip Type
- 0.69-inch 4K D-ILA device
- Native Resolution
- 4096 x 2160
- Number Of Chips
- 3
- Display Resolution
- 4096 x 2160
Light Source
- Laser
- Yes
- Type
- BLU-Escent Laser Diode
- Life Time (Standard Mode)
- 20000 hours
- Brightness
- 2000 lm
- Dynamic Contrast
- ∞ : 1
- Native Contrast
- 40000 : 1
- Dynamic Light Power control
- Yes
- Modes
- Low,High,Balance,Off
- Manual Aperture
- Yes
- Range
- -15 (stops down) to 0 (opens up)
- 100% REC 709
- Yes
- Color Bit Depth
- 12 bit
- ISFccc Certification
- Yes
HDR
- HDR10
- Yes
- HDR10+
- Yes
- Frame Adapt HDR
- Yes
- HLG
- Yes
- Mastering Info Display
- Yes
- Info data
- MaxCLL, MaxFALL , DML
- Deep Black Tone Control
- Yes
Lens
- Zoom
- 1.6 x
- Throw Ratio
- 1.34 - 2.14 (16:9)
1.26 - 2.01 (17.9)
- Diameter
- 80 mm
- Build
- 15-element, 11-group.
- Lens Shift
- Yes
- Range Horizontal
- ± 28 %
- Range Vertical
- ± 70 %
- Motorized Zoom
- Yes
- Motorized Shift
- Yes
- Motorized Focus
- Yes
- Projection Display size (diagonal)
- 60 - 200 inch
- Memory Function
- Yes
- Number of user presets
- 5
- Lens Cover
- Yes
HDMI
- HDMI
- Yes
- Number of Inputs
- 2
- Data Rate
- 32 Gbps
- HDCP Version
- 2.3
- 4K60P signal input
- Yes
- Video Signal range
- 480p, 576p, 720p 60/50, 1080p 60/ 50/ 30/ 25/ 24, 3840 x 2160p 60/ 50/ 30/ 25/ 24, 4096 x 2160p 60/ 50/ 30/ 25/ 24
- PC Signal range
- 640x480, 800x600, 2048x1080, 1600x1200, 1920x1200, 2048x1536, 2560x1440
- Input Level Adjustment
- Auto / Standard (16-235) / Enhanced (0-255) / Super White (16-255)
- Color Space Range
- Auto/ YCbCr444 / YCbCr422 / RGB
- EDID Modes
- Standard, Option1 , Option2 (older hardware may need to use Option1 or Option2 settings)

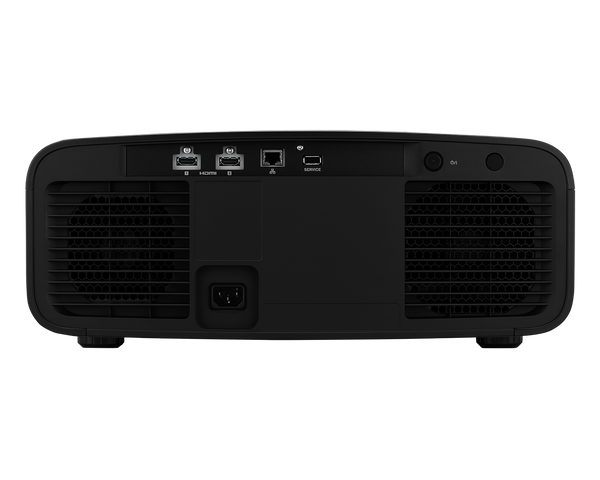

Connections
- LAN
- Yes
- Connector
- RJ45
- Service
- Yes
- Connector
- USB (Type A) for firmware update or backup
Picture Settings
- Picture Modes
- Natural, Cinema, Filmmaker, Vivid, Frame Adapt HDR1,Frame Adapt HDR2, HDR10+, HLG, FilmMaker, 4 User modes
- Color Temperatures
- 5500K, 6500K, 7500K, 9300K, High Bright, HDR10+, HDR10, HLG, Custom 1, Custom 2
- Gamma Processing Depth
- 12 bit
- Gamma Adjust
- HDR (Auto), HDR(PQ), HDR(HLG), 2.2, 2.4, 2.6, Cinema 1, Cinema 2, Vivid, 3 Custom modes
- Color Management
- 6-Axis adjustable CMS
- MPC
- Yes
- Filmmaker Mode
- Yes
- Auto Calibration
- Yes
- Installation Mode
- Yes
- Number of modes
- 5
- Included settings
- Lens Control, Pixel Adjustment, Mask, Anamorphic on or off, Screen Adjust, Installation Style, Keystone, and Aspect
- Anamorphic Modes
- 4 Modes (A, B, C, D)
- Control4 SDDP
- Yes
Power & Environment
- Power Requirement
- AC100-240V, 50/60Hz
- Projector in Use
- 280W
- Standby
- Eco-mode: 0.3W
- Network Standby
- 1.5W (LAN)
- Switchover time
- Approx. 15 min. (To standby or networked standby; default)
- Fan Noise
- 23 dB
- Eco Mode
- Yes
- Standby Timer
- Yes
- Operating Temperature
- 5°C to 35°C
- Operating Humidity
- 20% to 80%
- Installation Angle
- Horizontal +/- 10 degree / Vertical +/- 10 degree
- Installation Height
- Below 2,000 m
In the box
- Remote Control
- Yes, RM-MH27
- Quick Guide
- Yes
- Power Cord
- Yes
- Batteries
- Yes, 2 x AAA-size batteries
Dimensions & Weight
- Product Dimensions (WxHxD)
- 450 x 181 x 479 (mm)
- Product Weight
- 14.6 Kg
- Package Dimensions (WxHxD)
- 585 x 361 x 600 (mm)
- Package Weight
- 18.9 Kg
