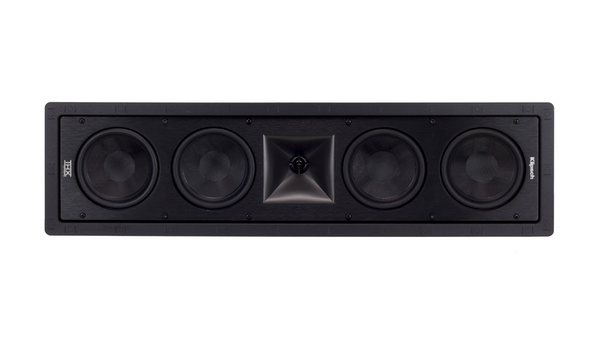

THX-504-L

$1,499.00

THX® SELECT CERTIFIED Delivers effortless dynamic range and brings superior sound to larger areas...

Read More

THX® SELECT CERTIFIED

Delivers effortless dynamic range and brings superior sound to larger areas thanks to its highly regarded THX Select certification. It not only delivers consistent compelling audio to larger-sized rooms it also brings real cinema sound to the comforts of home without taking up any floor space.

CINEMA QUALITY SOUND

Employs high output fiberglass woofers for powerful bass impact, while a 1-inch titanium tweeter mated to a new symmetrical pattern 90 x 90 square Tractrix® Horn generates flat in-room frequency response with high efficiency and low distortion.

MAXIMUM INSTALLATION RELIABILITY

This in-wall speaker also consistently delivers thrilling, realistic sound, whether it’s installed horizontally or vertically. It features sure-grip mounting dogs that provide even pressure against drywall for long-term installation reliability, and includes a paintable grille that blends in perfectly with any décor.

UNLIMITED FLEXIBILITY

Timbre matched to all of our THX-certified products, so you can mix and match to create an unbeatable, discreet stereo or home theater system that’s just right for you.

EDGE-TO-EDGE GRILL

Covering the whole of the speaker makes painting the product both simpler and quicker. Premium Neodynium magnets make it easy to install and remove and ensure a secure and flush fit without any moving parts. The flat grill allows better harmonization with today’s modern interior designs and disappear into the background, enabling sound to take center stage.

SPECIFICATIONS



SYSTEM 3-way in-wall LCR
FREQUENCY RESPONSE 46 Hz - 20 kHz +/- 3dB
POWER HANDLING  (Cont/Peak)150W/600W
RECOMMENDED AMP POWER 150W
SENSITIVITY 92 dB
IMPEDANCE 8 Ohms compatible
HIGH FREQUENCY DRIVER 1” (2.5cm) Titanium diaphragm compression driver mated to 90° x 90° square Tractrix® Horn
HIGH FREQUENCY CROSSOVER  250 Hz & 2100 Hz

LOW FREQUENCY DRIVER  Four 5.25” (13.3cm) high-output, fiberglass cone woofers

ENCLOSURE MATERIAL  MDF & Aluminum motorboard /ABS frame

ENCLOSURE TYPE  Infinite baffle, front flush with wall

HOLE DIMENSION  27.25” (69.2cm) H x 6.5” (16.5cm) W

DIMENSIONS  28.5” (72.4cm) H x 8” (20.3cm) W
MOUNTING DEPTH 3.75” (9.5cm)
WEIGHT 18.3lbs (8.3kg)
FINISH  White paintable grill
ROUGH-IN KIT IK-504-W (P/N 1009683)
