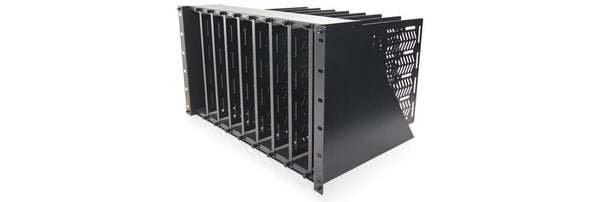

Blustream 8xIP Rack-Shelf 6RU

Our RSU-6RU rack shelf solution has been designed to compliment our range of Blustream HDBaseT™ and IP extender solutions.

The unit comes with 8 pull-out vertical ventilated shelves suitable for mounting any of our Blustream transmitter or receiver products as well as any smaller pieces of AV equipment.

For additional security the RSU-6RU is supplied with a 6RU vented front panel to deter un-wanted access to the product/s behind.

Box Contents

1 x RSU-6RU Enclosure
8 x Shelf Units
1 x Vented 6RU Front Panel

Key Features

• 6U 19" rack shelf enclosure

• 8 x removable vertical blade shelves with ventilation / mounting points*, ideal for rack installation of any Blustream TX or RX product, or general AV equipment

• 6U vented front panel to deter unwanted access to the product/s contained behind

• Vertical shelves can be removed from the main enclosure and include multiple fixing points to assist ease of installation

• Vented shelves to assist with ventilation of unit

  *Please Note: Mounting bolts for attaching units to the vented shelves are not included with this product.

Specifications

• Product Dimensions (W x D x H): 440 x 340 x 264mm (without wings)

• Shelf Dimensions (H x D): 335 x 236mm

• Distance Between Shelves: 54mm

• Product Weight: 4.7kg

• Carton / Box Dimensions (W x D x H): 580 x 485 x 395mm

• Shipping Weight: 12.5kg
