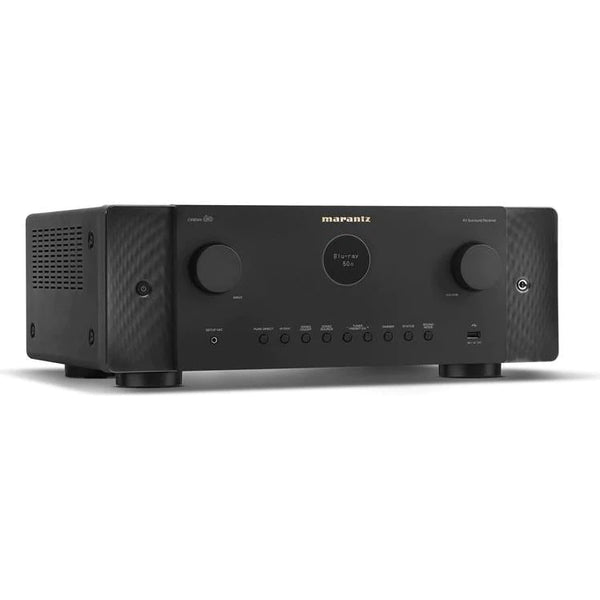

High-performance 7.2 channel AV receiver with 100 watts per channel amplification, Dolby Atmos, DTS:X, 8K Ultra HD, and HEOS built-in streaming. CINEMA 60 is the new standard of foundational luxury home theatre.
PEERLESS PERFORMANCE
Immersive spaciousness, warm and rich tone, and lifelike dynamics are legendary hallmarks of Marantz sound.
TECHNOLOGY LEADER
CINEMA 60 comes packed with the latest immersive audio formats, 8K video, room optimisation, streaming, and more technology to simplify and elevate your enjoyment.
EXQUISITE DESIGN
A modern expression of timeless design principles, CINEMA 60 includes our iconic porthole, symmetry, and visual cues representing legendary Marantz quality.
BELIEVE IN QUALITY
PERFORMANCE
The Marantz Sound Master meticulously tuned CINEMA 60 for amazing performance with our proprietary HDAM amplification circuitry to create the Most Musical Sound in your home.
STYLE
Excellence is heard and seen. CINEMA 60 features architectural design that can be featured or remain discreet in any
luxurious environment.
CUSTOMISABILITY
Thoughtfully selected connectivity options, flexible speaker arrangements, and fine-tuning ability allow you to make CINEMA 60 your own.
EFFORTLESS
Included remote, accessible front-panel controls, and an intuitive on-screen setup process make you feel like an expert user right away.
SPECIFICATIONS
POWER AMPLIFIER
Number of Powered Channels
7
Power Output (8 ohm, 20 Hz - 20 kHz, 0.08% 2ch Drive)
100 W
Power Output (8 ohm, 20 Hz - 20 kHz, 0.05% 2ch Drive)
-
Power Output (6 ohm, 1 kHz, 0.7% 2ch Drive)
140 W
Power Output (6 ohm, 1 kHz, 10% 1ch Drive)
200 W
70% Guarantee
Yes
Discrete Power Amplifier
Yes
Amplifier Topology
Class A/B
Current Feedback Topology
Yes
Bi-Amp Drive
assignable
MULTICHANNEL SURROUND TECHNOLOGIES
DTS
DTS HD Master, DTS:X, DTS Neural:X, DTS Virtual:X
Dolby
Dolby TrueHD, Dolby Atmos, Dolby Atmos Height Virtualization, Dolby Atmos Music, Dolby Surround
Other
Max Number of Processing (Preamp) Channels
7.2
INPUTS/OUTPUTS
Composite In / Out
0/0
Component In / Out
0/0
HDMI In / Out
6 / 2
Multi-Room Video Out via HDMI
0/0
Analog In / Fixed Level Out
4 in / 0 out
Phono (MM) In
Yes
Digital In: Optical / Coaxial
2 / 2
Multi-Room Out: analog / digital
1 / 0
Multichannel Preamp Out
7.2
Subwoofer Out
2
7.1 multichannel input
No
Number of Speaker Terminals
7
Speaker A / B
assignable
Multi-Room Speaker Terminal
assignable
Front Inputs
USB-A
USB Audio
Yes / No / No
FM Tuner with RDS
Yes
DAB+ Tuner
No
HDMI
Total HDMI Inputs / No. Support 8K
6 / 3
HDCP2.3 support
Yes
HDMI Outputs: Main / Zone
2 / 1
Analog to HDMI Video Conversion
No
HDMI Upscaling
1080P/4K to 8K
Max resolution @ framerate
Audio Return Channel
eARC
Video Dynamic Range
HDR / HLG / Dolby Vision / HDR10+ / Dynamic HDR
ALLM (Auto Low Latency Mode) Pass-through for gaming
Yes
Variable Refresh Rate / Quick Frame Transport
Yes / Yes / No
HDMI Pass-Through in Standby Mode
Yes
CEC
Yes
DSD Audio over HDMI
No
Auto LipSync
Yes
PERFORMANCE TECHNOLOGIES
Copper Plated Chassis
No
Toroidal Power Supply Transformer
No
Hyper Dynamic Amplifier Modules (HDAM) (List version)
Yes
Pure Direct Mode
Yes
Gold Plated RCA Terminals
Yes
Clock Jitter Reducer
No
ACOUSTIC / ROOM CORRECTION
Audyssey
MultEQ XT
Audyssey Dynamic EQ / Dynamic Volume
Yes / Yes
Audyssey LFC
No
Dirac Live Support
No
Variable Cross Over
Yes
Optimized Bass Redirection
Yes
Bass Sync
No
MUSIC FILE SUPPORT
Lossy Formats
MP3 / WMA / AAC
Lossless formats
FLAC HD 192/24 / WAV 192/24 / ALAC 192/31
DSD Audio
2.8 MHz / 5.6MHz
Gapless Playback
FLAC, WAV ,ALAC ,DSD
Compressed Audio Enhancer: MDAX2
Yes
Network Audio Sharing
Yes
STREAMING SERVICES
HEOS Multi-room and Streaming
Yes
AirPlay Audio Streaming
AirPlay2
Internet Radio
TuneIn
Spotify*
Spotify Connect
Pandora
Yes
SiriusXM
Yes
Other Streaming Services *
Amazon Music HD/
Roon tested
Yes
NETWORK CONNECTIVITY
Ethernet Ports
Yes
Wi-Fi (include version / band)
Yes
Bluetooth (Include version)
Yes
Bluetooth Re-transmit for Bluetooth headphones
Yes
SMART HOME INTEGRATION AND CONTROL
Voice Assistant Compatibility
Alexa / Google Voice Assistant / Apple HomePod
App for Smart Phones & Tablets (iOS & Android)
Marantz AVR App
HEOS Multi-Room Integrated
Yes
HEOS Link Compatibility: IR/ IP
Yes / Yes
Multi-Room zones
2
Zone Audio Source: HDMI / Opt, Coax / Network, USB / Analog
2 Ch / 2Ch / Yes / Yes
Zone Audio Output: Speaker / Preout
Yes / Yes
Zone HDMI Output from HDMI Source
Yes
Control Connectivity
IP Control / RS232 Control / Web Control / App Control
IR Flasher In
Yes
Marantz Remote Bus
Yes
DC Trigger Output
1
HDMI Diagnostics
Yes
OTHERS
Front Display
port hole OLED
Primary Display Size (diagonal in/mm)
Secondary Display Size (diagonal in/mm)
GUI Languages
9
Setup Assistant
Yes
Smart Select on Remote
Yes
Firmware Update by Network / USB
Yes / Yes
ECO Mode
Yes
Auto Power off
Yes
Sleep Timer
Yes
GENERAL
Available Colours
Black/Silver-Gold
Metal Front Panel
No
System Remote Control
RC-049SR
Power Consumption in W
650
Power Consumption No-Sound (ECO on/off) in W
45 W / 75 W
Standby Consumption in W
0.2
CEC Standby Consumption in W
0.5
Network Standby Consumption in W
Less than 2.0
Maximum Dimensions
442 x 354 x 165
Weight in kg
10.9
What's in the box
Main unit, remote control, batteries, AM/FM antennas, wire labels, quick start guide, Audyssey microphone, card board microphone stand, 2 External Detachable Antenna, AC cord
