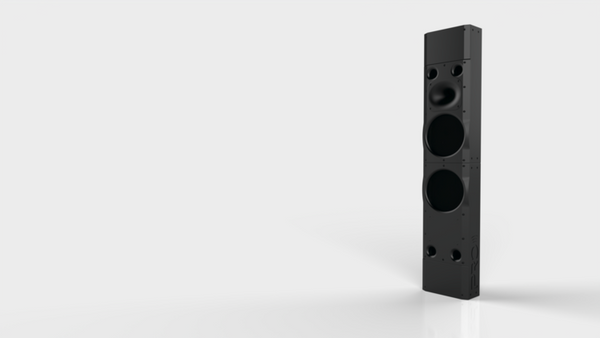

MAXIMUM OUTPUT DOUBLE 12” MODULAR SHALLOW SCREEN AND SURROUND LOUDSPEAKER
SPECIFICATIONS:
APPLICATION: Tri-amplified medium format multipurpose loudspeaker
LF SECTION: 2 x 12" professional grade woofers with 4" voice coils
HF SECTION: 1.7" professional-grade compression driver with advanced polymer diaphragmon 80° x 60° elliptical horn
CROSSOVER: 8th order acoustic via DSP
POWER HANDLING: 1400W LF / 100W HF
SENSITIVITY: 93dB LF / 108dB HF
POWER REQUIREMENTS: Tri-amplification via PRO Amplified Loudspeaker Controller
WIRING REQUIREMENTS: 6 conductors
FREQUENCY RANGE: 38Hz – 22kHz, -6dB
MAXIMUM OUTPUT: 128dB
NOMINAL IMPEDANCE: 2 x 4-ohms LF / 8-ohms HF
DIMENSIONS: 36" H x 14" W x 7.5" D (PER MODULE); 72”H x 14”W x 7.5” D
WEIGHT: 100 lbs.
