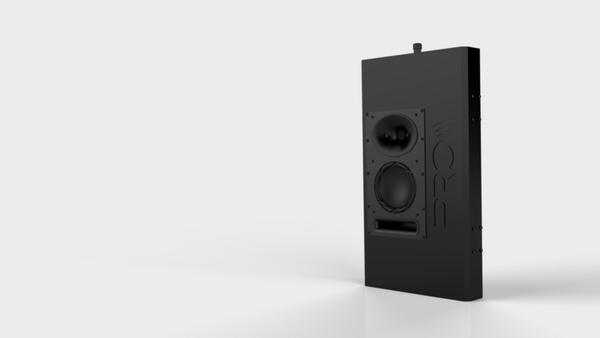

SR-6im/SR-6im-P

HIGH OUTPUT 6” IN-WALL / AIMABLE TWO-WAY SCREEN AND SURROUND LOUDSPEAKERSPECIFICATIONS: ...

Read More

HIGH OUTPUT 6” IN-WALL / AIMABLE TWO-WAY SCREEN AND SURROUND LOUDSPEAKER
SPECIFICATIONS:

  • APPLICATION: Bi or single amplified in-wall / aimable loudspeaker with optional paintable perforated grille

  • LF SECTION: 6.5" professional grade woofer with 2” voice coil

  • HF SECTION: 1.4" professional-grade compression driver with advanced polymer diaphragm on 80° x 60° elliptical horn

  • CROSSOVER: 8th order acoustic via DSP; Internal passive network (SR-6im-P)

  • POWER HANDLING: 280W LF / 100W HF

  • SENSITIVITY: 93dB LF / 108dB HF

  • POWER REQUIREMENTS: Bi (SR-6im) or single amplification (SR-6im-P) via PRO Amplified Loudspeaker Controller

  • WIRING REQUIREMENTS: 4 conductors (SR-6im); 2 conductors (SR-6im-P)

  • FREQUENCY RANGE: 54Hz – 22kHz

  • MAXIMUM OUTPUT: 116dB

  • NOMINAL IMPEDENCE: 4-ohms LF / 8-ohms HF

  • DIMENSIONS: 26" H x 14" W x 3.9" D

  • WEIGHT: 21 lbs.

  • OPTIONAL LOW PROFILE PAINTABLE PERFORATED GRILLE : PART NO. '“SR-6im/25im-GRILLE-KIT”
